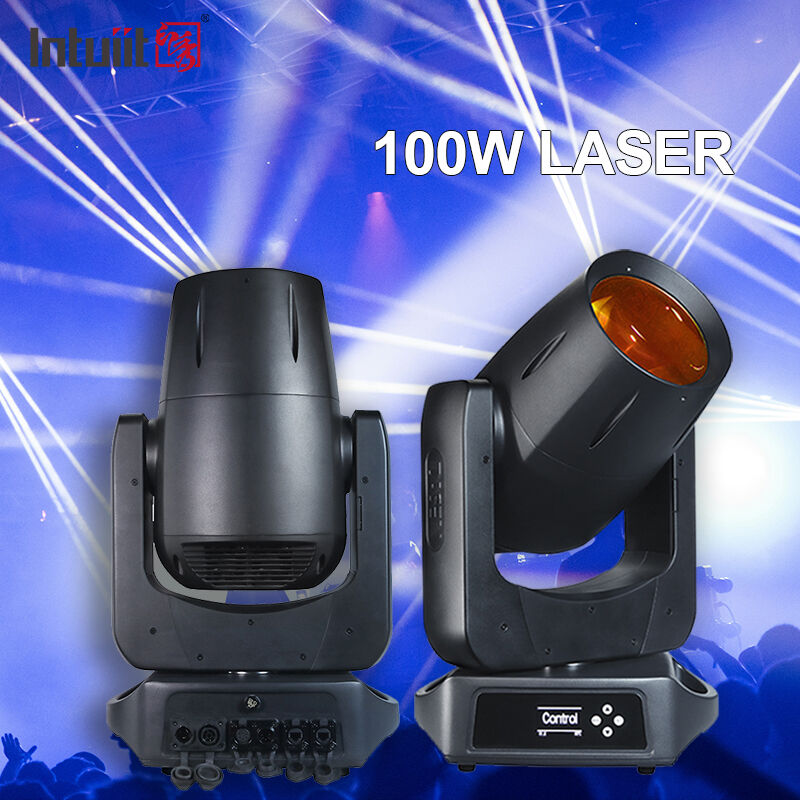

100W Laser Light Moving Head Beam Light Waterproof Moving Head for Outdoor Scenic Area
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | Intuiit |
| Sertifika: | CE&RoHS |
| Model numarası: | XY-052P |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | MOQ 20pcs |
|---|---|
| Ambalaj bilgileri: | 16°C ila 32°C |
| Teslim süresi: | Kitle siparişi için 25-35 gün |
| Ödeme koşulları: | T/T önceden (% 30 depozito, teslimattan önce% 70 bakiye ödemesi) |
| Yetenek temini: | 5000PCS / Ay |
|
Detay Bilgi |
|||
| Kaynak: | 100W lazer | ŞNT: | 10000K |
|---|---|---|---|
| Renk: | 75 | Işın Açısı: | 0.8 ° |
| Renkli tekerlek: | 12+1open | İris: | Cmy |
| Döndürülmüş gobo tekerleği: | 10+1 Açık | Sabit gobo tekerleği: | 23+1open |
| İlkel: | 18/36 Faset Prizma + 6 Doğrusal Prizma | IP Sınıfı: | IP66 |
Ürün Açıklaması
Dasen Imager B100 Moving Head: Precision Engineering for Professional Lighting
Body:
Presenting the Dasen Imager B100, a compact wash/beam moving head engineered to deliver high-output performance without compromising on versatility. Designed for rental companies and installation professionals who demand reliability, it combines cutting-edge optical technology with rugged durability.
Key Technical Specifications:
-
Advanced Color Mixing: Features a patented 8-color wheel complemented by a full CMY mixing system, allowing for seamless transitions and an infinite spectrum of precise hues.
-
Versatile Pattern Projection: Equipped with 23 fixed and 10 rotating, indexable gobos (plus 1 open) to provide dynamic texture and limitless pattern combinations.
-
Spatial Effects: An ultra-bright rotating prism adds depth and complexity, creating immersive, multi-layered aerial effects.
-

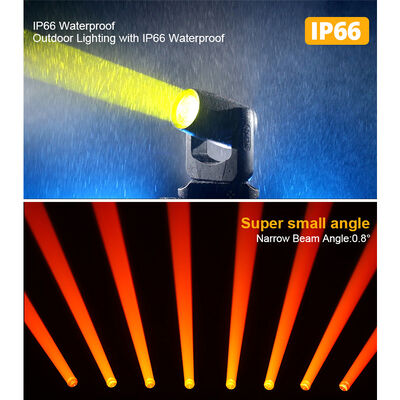

All-Weather Construction: Certified with an IP66 rating, the housing ensures absolute protection against water jets and dust, guaranteeing consistent operation in any European climate—from outdoor festivals to humid coastal venues.
Ideal for large-scale concerts, theatrical productions, and high-end architectural installations, the Imager B100 delivers studio-grade precision in a rugged, tour-ready package.
Technical Data
| Item No. | XY-052P |
| Light Source | 100W Laser |
| CRI | 75 |
| Iris | CMY |

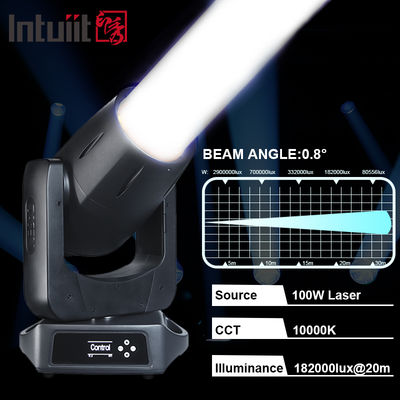

| Beam angle | 0.8Degree |
| Luminous flux | 182000LM@20m |
| Control Protocol | Art-Net, sACN,RDM, DMX |
| DMX Channels | 15/26CH |
| IP Grade | IP66 |
| Product's dimension | 356*246*586MM |
| Net Weight | 22KG |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
